SHINELINK AIR
Ultra-thin all-in-one LED displays with fast-lock installation.
15-minute quick installation
The modular, integrated design significantly simplifies the installation process, requiring no complex debugging or specialized technical skills. From unpacking to power-on, deployment can be completed in just 15 minutes.
Fast-Lock Structure
Innovative fast-lock structure, twist to lock.
Rail-Mounted Installation
Fast Installation, Easy Maintenance
Ultra-Thin Cabinet
Only 25 mm thick
Easy to install
Mobile tripod
Remote control
High brightness
Dual system
Innovative fast-lock design
The precision mechanism ensures secure positioning of each module,while allowing easy removal and maintenance.Efficient, safe, and reliable, making installation faster and hassle-free across applications.
Rail-mounted control box
Modular layout enables quick connections and operation,while allowing effortless maintenance and replacement,ensuring stable and efficient system performance.
Available in three sizes
Offering flexibility to suit different spaces and application requirements.
Ultra-light and
ultra-thin
The cabinet maintains structural strength and stability while remaining lightweight,making transportation, installation, and maintenance more efficient and convenient.
25mm
Ultra-thin body
Thickness is only 25mm
95KG
Ultra-light body
108-inch model: 95 kg without the stand
* The thickness is the thickness of the entire machine after removing the tripod.
* 95 kg is the weight of the 108-inch version without the stand.
Shinelink Air Specifications (COB)
| Parameter group | Model | 108 inch | 135 inch | 162 inch |
|---|---|---|---|---|
| Physical Parameters | ||||
| Physical Parameters | Overall Dimensions (mm) | 2410x2120.3x25 | 3010x2457x25 | 3610x2795x25 |
| Full Display Resolution (WxH) pixels | 1920x1080 | 1920x1080 | 1920x1080 | |
| Lightest weight (kg) | 95 | 130 | 170 | |

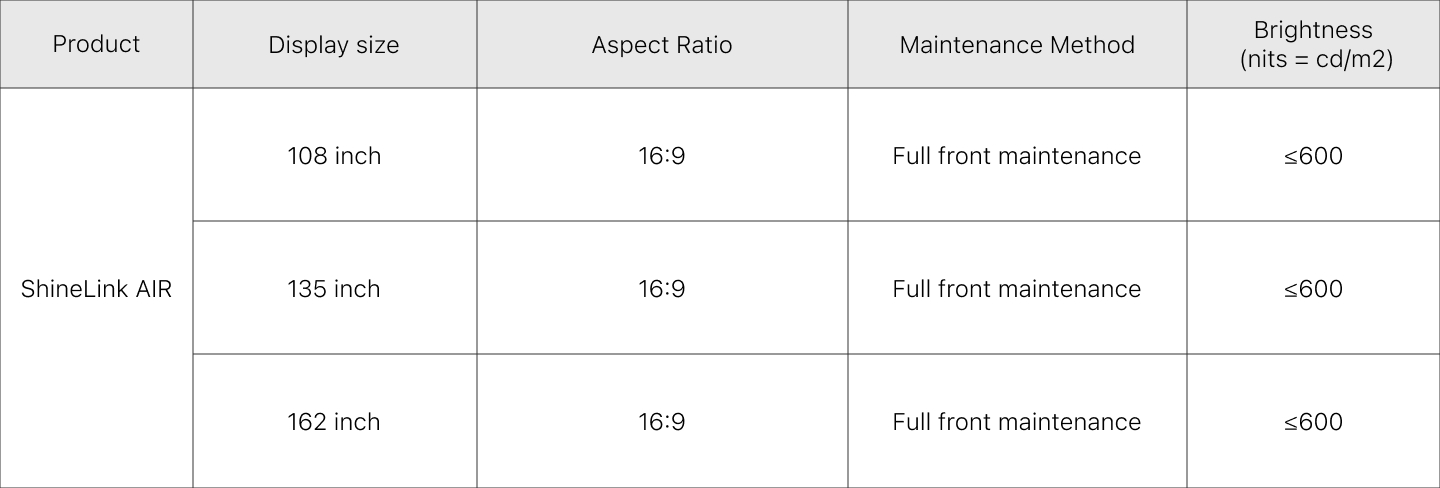

| Aspect Ratio | 16:9 | 16:9 | 16:9 | |
| Maintenance Method | Full front maintenance | Full front maintenance | Full front maintenance | |

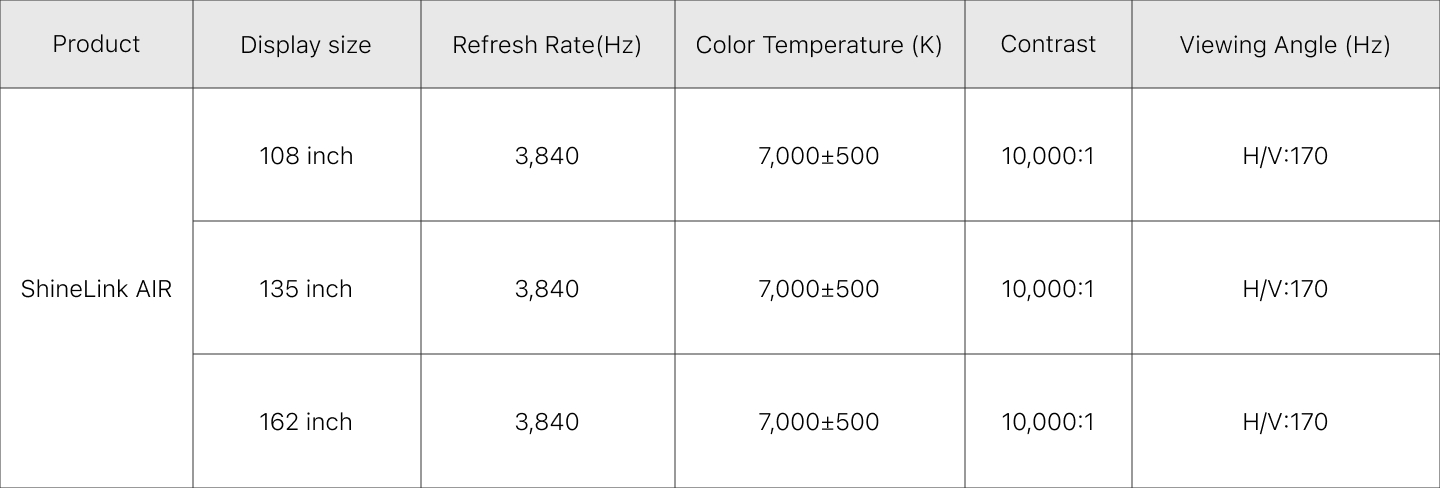

| Optical Parameters | ||||
| Optical Parameters | Brightness (nits = cd/m²) | ≤ 600 | ≤ 600 | ≤ 600 |
| Refresh rate (Hz) | 3,840 | 3,840 | 3,840 | |
| Color Temperature (K) | 7,000±500 | 7,000±500 | 7,000±500 | |
| Contrast | 10,000:1 | 10,000:1 | 10,000:1 | |
| Viewing angle | H/V:170° | H/V:170° | H/V:170° | |
| Electrical Parameters | ||||
| Electrical Parameters | Max. power consumption (W) | ≤800 | ≤1310 | ≤1900 |
| Typical power consumption (W) | ≤266 | ≤435 | ≤630 | |
| Working Voltage | 100V~240V , 60Hz | 100V~240V , 60Hz | 100V~240V , 60Hz | |
Specifications depend on the selected configuration. Final specifications are subject to the sales quotation.
