R-POSTER
Mobile COB LED posters for rental and permanent installations.
Fine pixel pitch P0.9-P1.8
Smaller pixel pitch allows for clearer display, richer details, and wider viewing angles. The best viewing distance is less than 1.5 meters.
Optional 0.9/1.2/1.5/1.8MM pitch
Wide viewing angel High contrast Low reflection
Our relentless attention to detail has led us to develop an anti-reflective coating that operates on the nanometer level. scattering light and minimising glare to an unprecedented degree.
Visual Experience
Enhancement
＜1.5M
Best viewing distance
＞170°
Super wide viewing angle
10,000:1
Ultra high contrast
600nits
Brightness
Extra large display area
We can obtain a larger display area and higher resolution by seamlessly splicing multiple posters together. This splicing technology can create more attractive and impactful visual effects.
16:9
Ratio available
2K+
Resolution available
Multiple signal input
Synchronized and asynchronous modes, to meet the needs of a variety of applicationsSynchronized playback, with instant display to screen. Asynchronous playback, with remote publishing. Free switching between the two modes at any time
Bluetooth
transmission
Wireless
playback
U-disk playback
USB 3.0
HDMI
2.0
Cloud
playback
Rental model
By using rapid leasing structures, installation and assembly can be carried out more quickly and flexibly
Lease structure
Positioning post

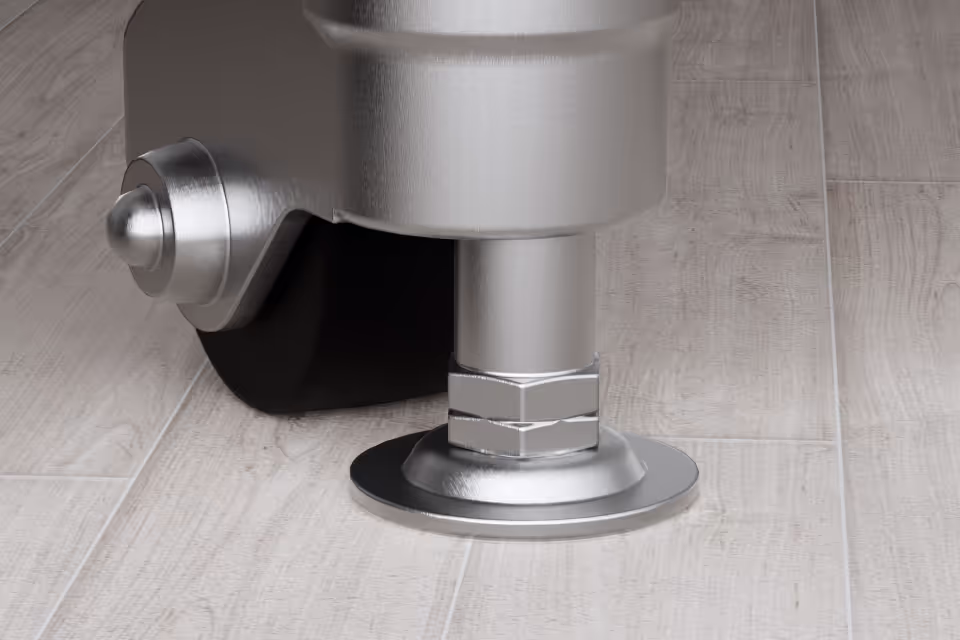

Adjustable foot pads
Quick lock
COB TechnologyFlip
chip technology
R-Poster Specifications (COB)
| Parameter group | Model | 0.9 | 1.2 | 1.5 | 1.8 |
|---|---|---|---|---|---|
| Physical Parameters | |||||
| Physical Parameters | Size of module (W x H) | 150x168.75mm | 150x168.75mm | 150x168.75mm | 150x168.75mm |
| Resolutions (W x H) | 640x2160 | 480x1620 | 384x1296 | 320x1080 | |
| Poster size (W x H) | 606.8x2100x500mm | 606.8x2100x500mm | 606.8x2100x500mm | 606.8x2100x500mm | |
| Weight | 55kg / Poster | 55kg / Poster | 55kg / Poster | 55kg / Poster | |
| Application | Indoor use only | Indoor use only | Indoor use only | Indoor use only | |
| Louver design | COB | COB | COB | COB | |
| Optical Parameters | |||||
| Optical Parameters | Brightness | 600nits (Calibrated) | 600nits (Calibrated) | 600nits (Calibrated) | 550nits (Calibrated) |
| Color temperature | 7,000±500K | 7,000±500K | 7,000±500K | 7,000±500K | |
| Electrical Parameters | |||||
| Electrical Parameters | Working Input voltage | AC:100~240V / 60Hz | AC:100~240V / 60Hz | AC:100~240V / 60Hz | AC:100~240V / 60Hz |
| Operating Parameters | |||||
| Operating Parameters | Input signal | HDMI / DVI | HDMI / DVI | HDMI / DVI | HDMI / DVI |
Specifications depend on the selected configuration. Final specifications are subject to the sales quotation.
