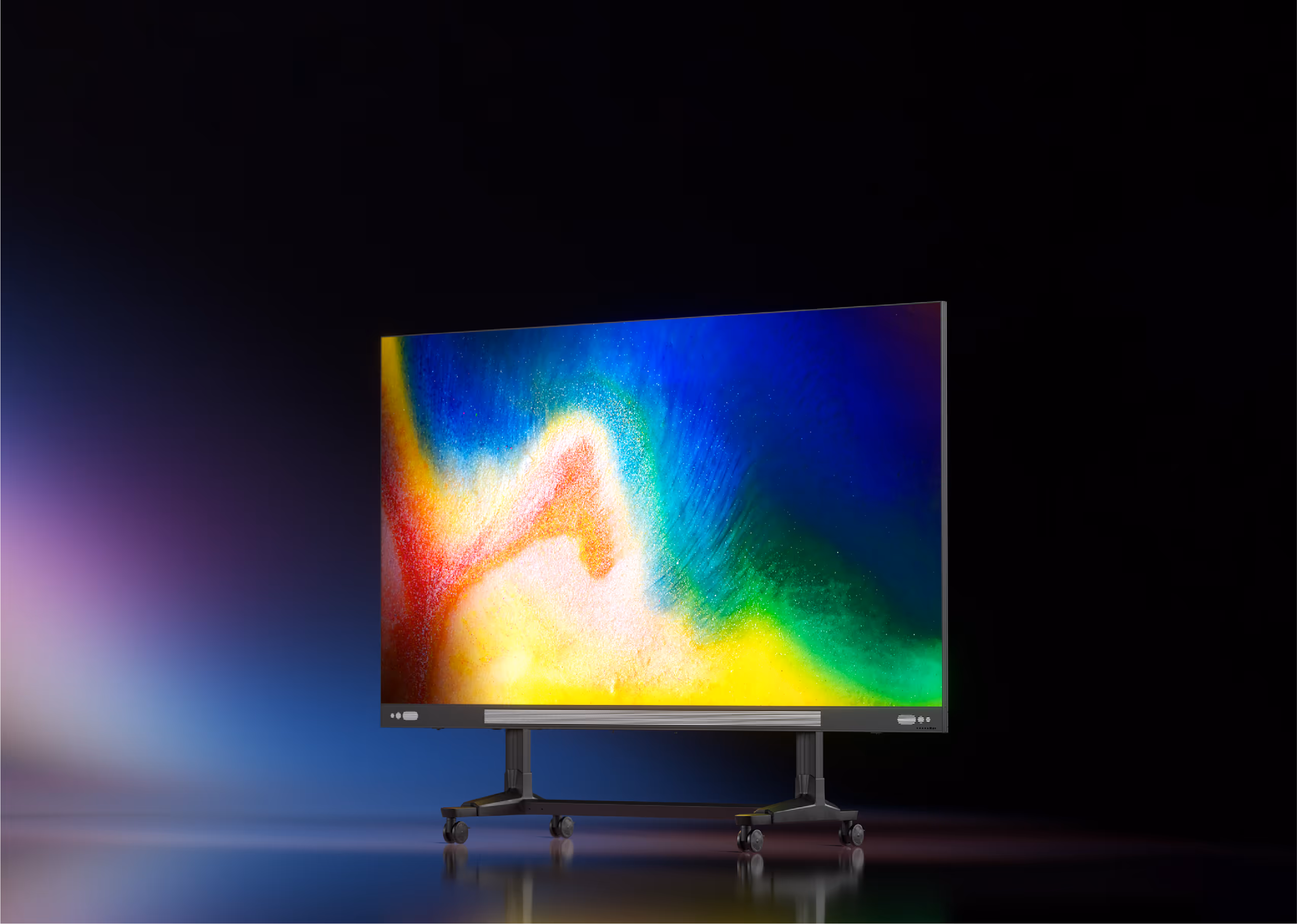

SHINELINK FOLD
An all-in-one LED display with a lifting and folding design.

Elevating Design
It supports electric height adjustment, with the height flexibly adjustable between 2049mm and 2671mm. This allows it to easily adapt to display needs in different scenarios and deliver a viewing experience that better aligns with usage habits.

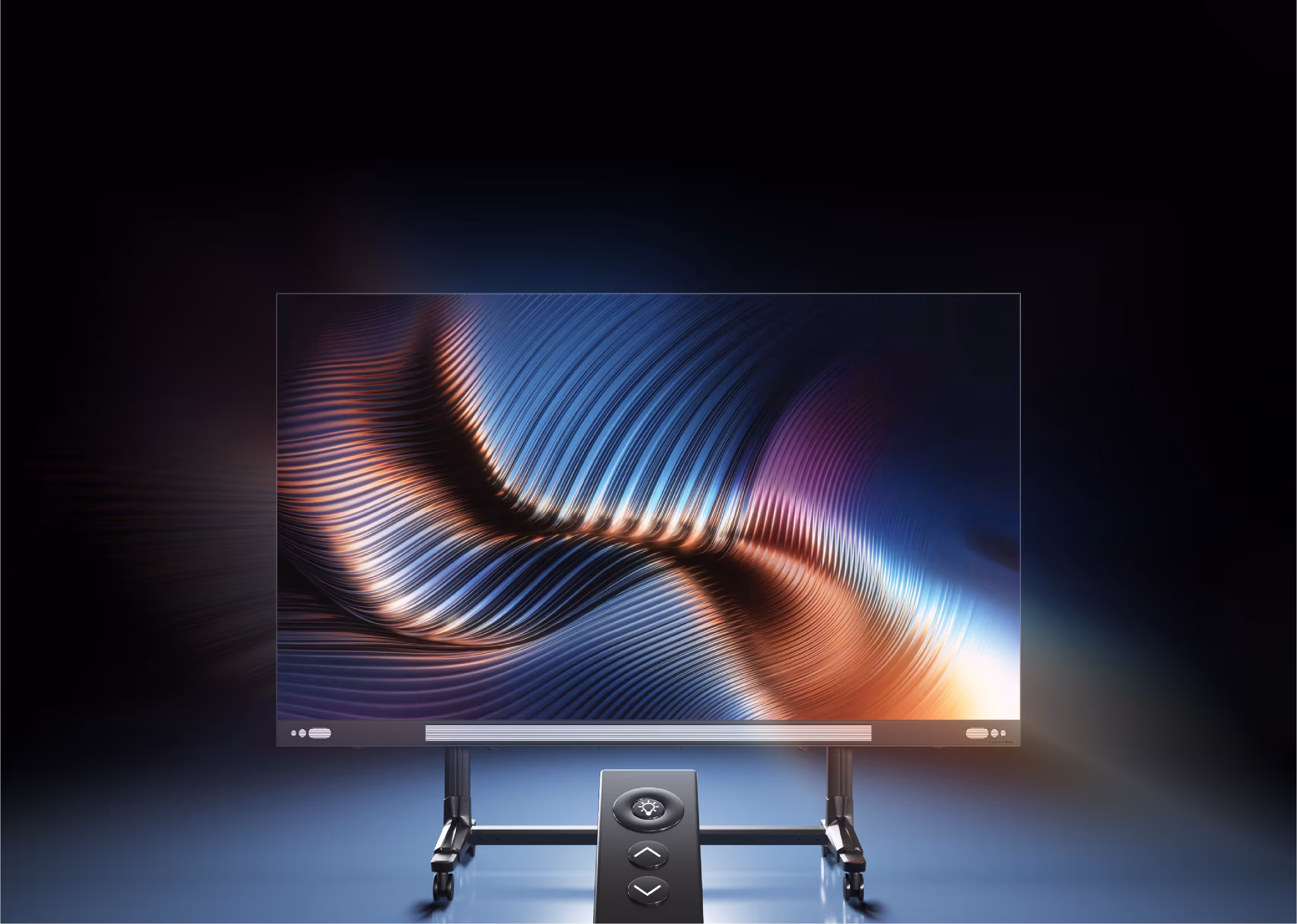

Remote control lifting height
Supports full front-side height adjustment. Use the dedicated remote to easily, precisely adjust screen height from the front—no need to access the back. Streamlines single-user or multi-scenario operation, making adjustments faster and more user-friendly.

Foldable Screen Design
Equipped with a foldable screen function, the device’s size is significantly reduced after folding, allowing it to smoothly fit into standard elevators. This solves the passage challenge during the transportation of large display devices.

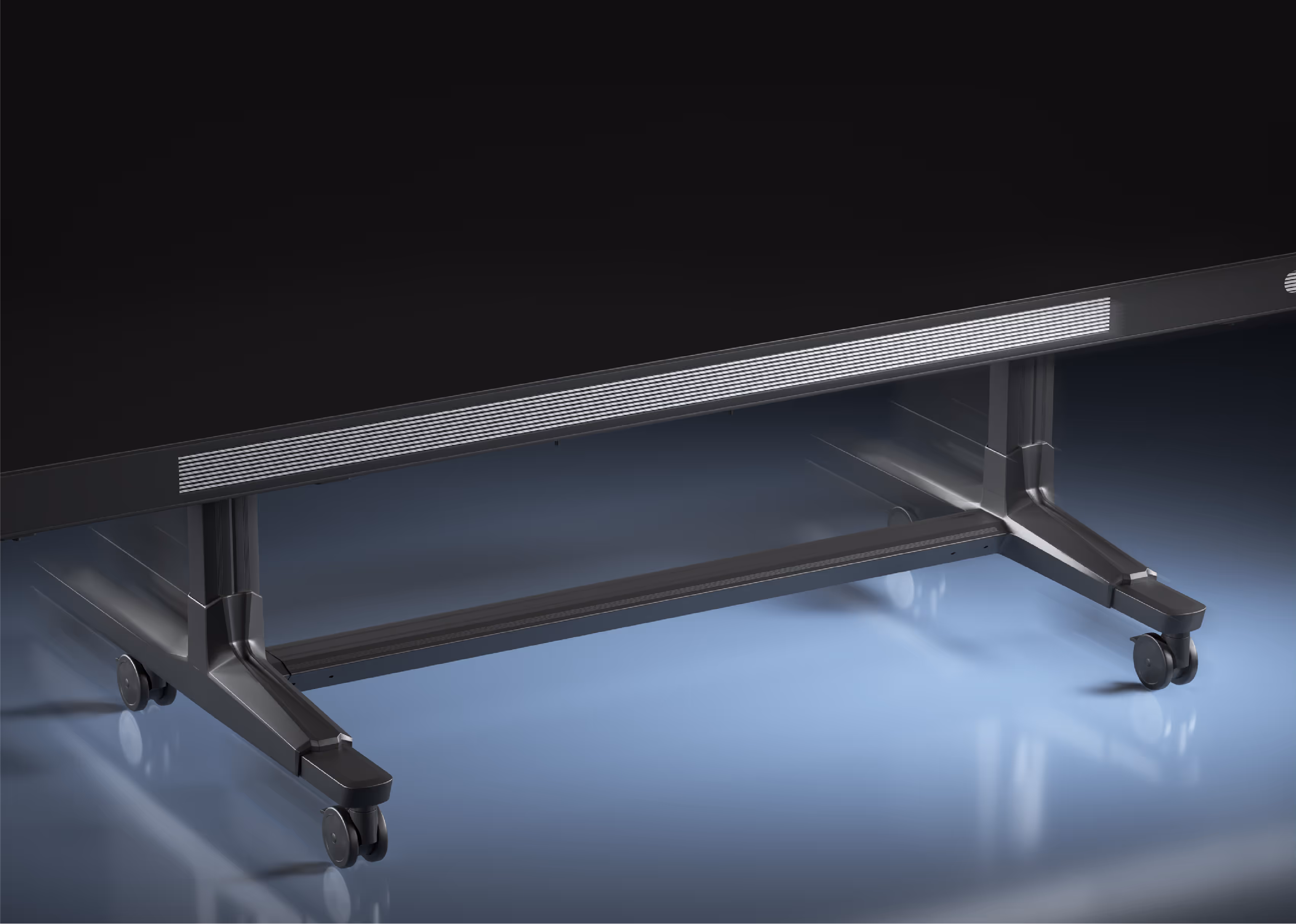

Mobile bracket design
Featuring a dedicated wheel design, the display gains flexible mobility. No heavy lifting is needed—just a light push allows quick adjustments to its placement. It easily adapts to needs like temporary scenario switches and space reorganization.

High Grayscale
Equipped with 21-bit high grayscale technology, it delivers smoother color transitions and sharper light-dark details—eliminating blocky artifacts. Ideal for HD videos, graphics, and demos, it offers a realistic visual experience for professional, quality-focused scenarios.

Safety lock
This safety lock is specially designed for foldable screens. It can firmly secure the screen in its open or closed position, preventing screen misalignment and scratches caused by jolts and shakes during transportation, and fully safeguarding the device's safety during transit.
Shinelink Fold Specifications (COB)
| Parameter group | Model | 108 inch | 135 inch |
|---|---|---|---|
| Physical Parameters | |||
| Physical Parameters | Overall Dimensions (mm) | 2410x1998.8x915 | 3010x2671.19x915 |
| Folded size (mm) | 1205x1719.79x915 | 1800x2049.79x915 | |
| Full Display Resolution (WxH) pixels | 1920x1080 | 1920x1080 | |
| Weight (kg) | 120 | 160 | |
| Aspect Ratio | 16:9 | 16:9 | |
| Maintenance Method | Full front maintenance | Full front maintenance | |
| Lift control | Remote control / Buttons | Remote control / Buttons | |
| Optical Parameters | |||
| Optical Parameters | Brightness (nits = cd/m²) | ≤ 600 | ≤ 600 |
| Refresh rate (Hz) | 3,840 | 3,840 | |
| Color Temperature (K) | 7,000±500 | 7,000±500 | |
| Contrast | 10,000:1 | 10,000:1 | |
| Viewing angle | H/V:170° | H/V:170° | |
| Electrical Parameters | |||
| Electrical Parameters | Max. power consumption (W) | ≤1120 | ≤1750 |
| Typical power consumption (W) | ≤370 | ≤580 | |
| Working Voltage | 100V~240V , 60Hz | 100V~240V , 60Hz | |
Specifications depend on the selected configuration. Final specifications are subject to the sales quotation.
