SHINE GLASS

Transparent LED for glass architecture.

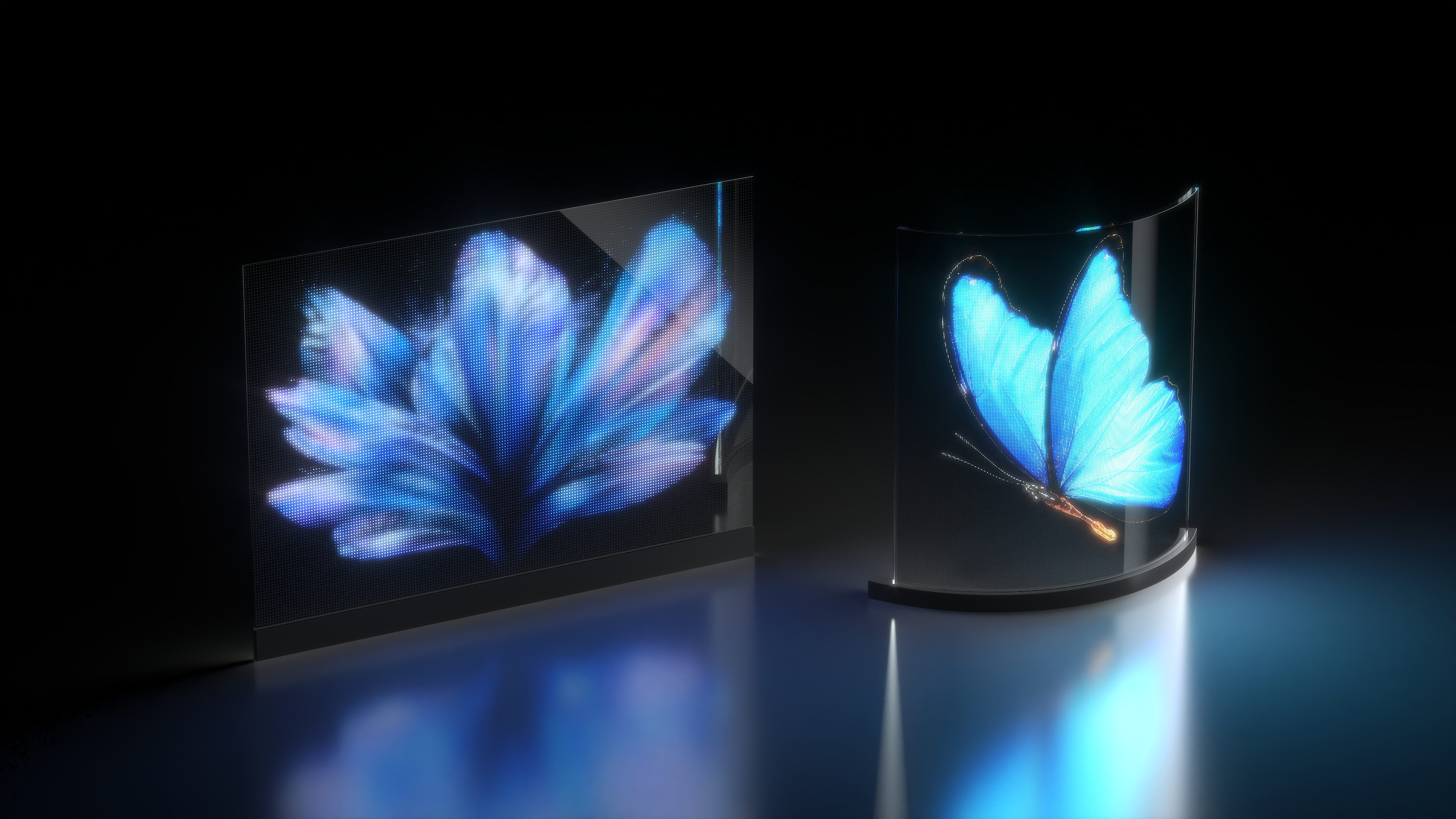

ShineLink Glass flat and curved transparent LED screens for creative installations

Advanced Transparent Glass Display Technology

Using tempered glass as the substrate, embedded chip and magnetron sputtering technologies create a surface electroplated circuitry system that combines display and structural functions. Based on an ultra-clear transparent glass carrier, it delivershigh-definition, high-transparency, energy-efficient display performance and supportscurved designs for seamless architectural integration.

ShineLink Glass transparent LED intelligent backstage remote control

Intelligent control

Backstage remote control

High brightness

Up to 3,000 nits high brightness
ShineLink Glass up to 3000 nits high-brightness transparent display

Translucent

Up to 95% light transmittance
ShineLink Glass up to 95% light transmittance display technology
ShineLink Glass creative DIY configuration in retail space installation

Creative DIY Configuration

Screen forms can be highly customized to meet on-site requirements, enabling flexible configurations for diverse application scenarios.

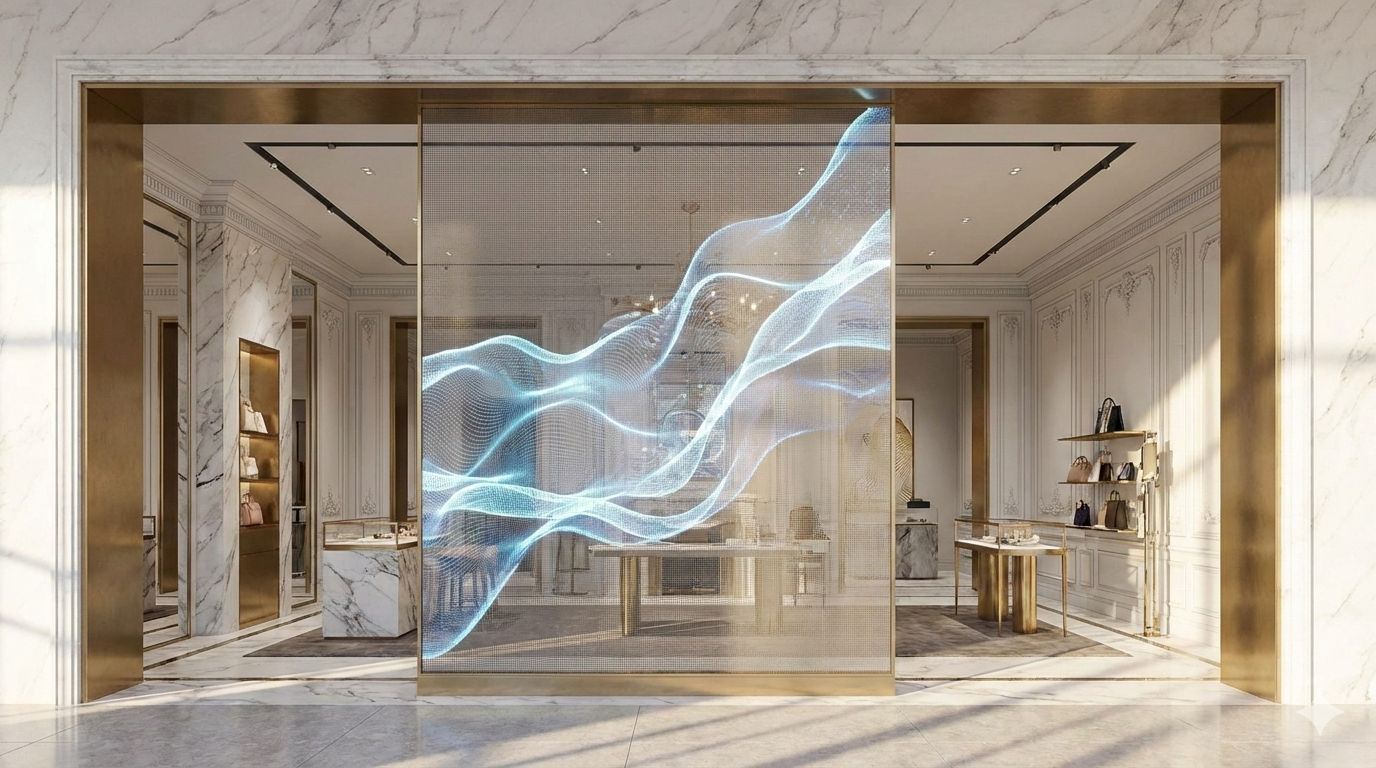

ShineLink Glass one-screen dual-impact transparent storefront display

One Screen, Dual Impact

When the screen is off, it remains fully transparent—preserving storefront visibility and product display.When activated, it transforms into a dynamic digital canvas, delivering vivid promotional content thatcaptures attention and draws customers in.

ShineLink Glass one-screen dual-impact transparent retail displayShineLink Glass one-screen dual-impact transparent storefront display-daytime effect

One Screen, Many Scenes

The transparent display features a lightweight, modular design that supports multiple installation methods,including hanging, wall-mounted, and embedded setups. With high transparency and clear visuals,it integrates seamlessly into various spaces without blocking views.

ShineLink Glass modular transparent panel layout for custom scenesShineLink Glass modular transparent panel layout for custom scenes-2

Transparency Above & Below

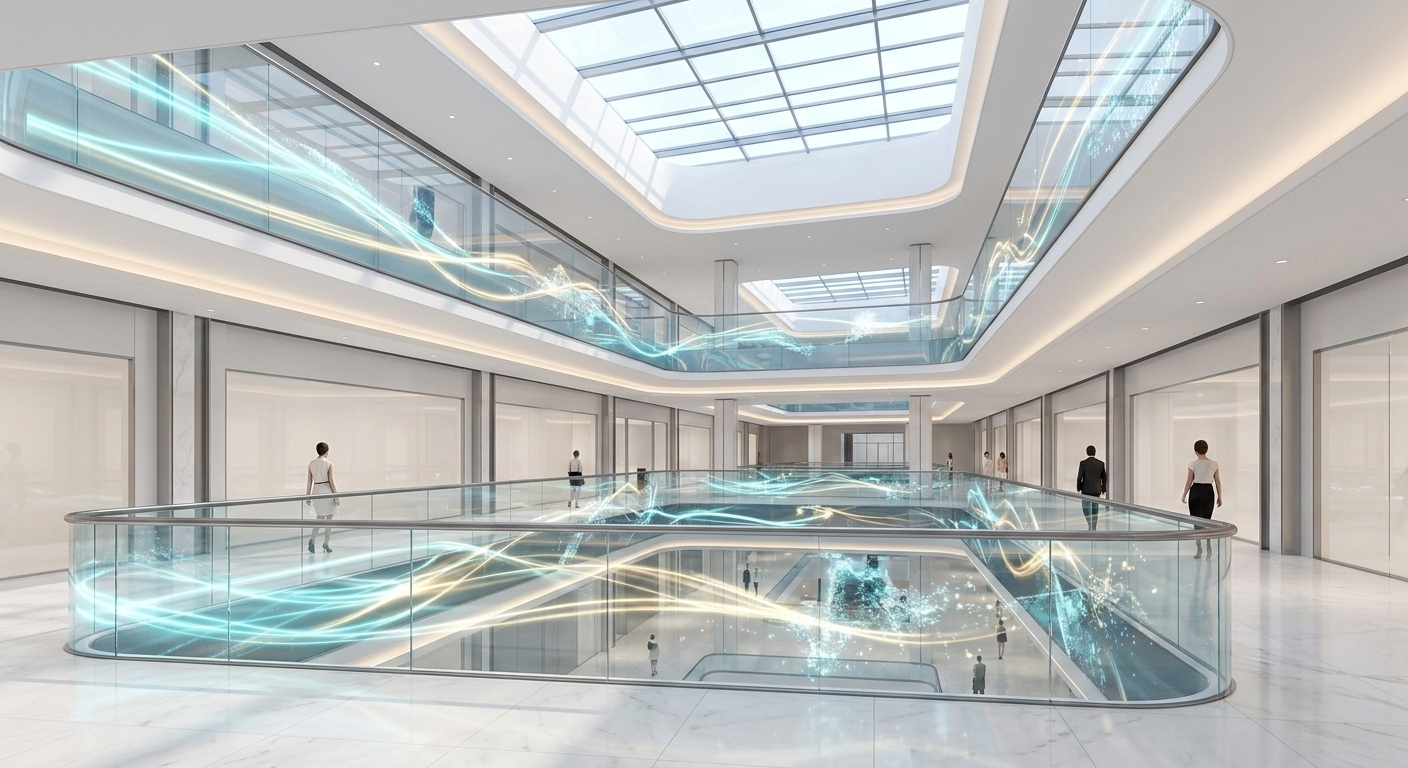

Transparent glass LED displays are seamlessly integrated into overhead canopies and floor surfaces, transformingarchitectural space into an immersive visual experience.Invisible when off, vivid when on, the display enhancesspatial depth while preserving natural light and open sightlines.

Shine Glass Specifications

Shine Glass Specifications
Parameter groupModelP4P6P8P10P20
Physical Parameters
Physical Parameters Module Size (mm) 1000*240 / 1200*240 / 1500*240 / Custom made1000*240 / 1200*240 / 1500*240 / Custom made1000*240 / 1200*240 / 1500*240 / Custom made1000*240 / 1200*240 / 1500*240 / Custom made1000*240 / 1200*240 / 1500*240 / Custom made
Cabinet Size (mm) Custom madeCustom madeCustom madeCustom madeCustom made
Weight <70KG/m²<70KG/m²<70KG/m²<70KG/m²<70KG/m²
Transparency 72%78%86%90%95%
Installation Method Adhesive/FixingAdhesive/FixingAdhesive/FixingAdhesive/FixingAdhesive/Fixing
Maintenance Method Front/back maintenanceFront/back maintenanceFront/back maintenanceFront/back maintenanceFront/back maintenance
Ingress Protection IP54IP54IP54IP54IP54
Optical Parameters
Optical Parameters Brightness (nits) 1500/50001500/50001500/50001500/50001500/4500
Refresh Rate 3840Hz3840Hz3840Hz3840Hz3840Hz
Gray Scale 16 Bit16 Bit16 Bit16 Bit16 Bit
Viewing Angle 160°160°160°160°160°
Electrical Parameters
Electrical Parameters Max. Power Consumption 400/800W/m²400/800W/m²400/800W/m²400/800W/m²400/800W/m²
Average Power Consumption 120/240W/m²120/240W/m²120/240W/m²120/240W/m²120/240W/m²
Operating Voltage DC 5V & DC 24DC 5V & DC 24DC 5V & DC 24DC 5V & DC 24DC 5V & DC 24
Operating Parameters
Operating Parameters Lifetime 100000 Hours100000 Hours100000 Hours100000 Hours100000 Hours

Specifications depend on the selected configuration. Final specifications are subject to the sales quotation.
